Handheld Metal DetectorFDT-MS22

Short Description:

DT-MS22 is our newly developed ultra-high sensitivity handheld metal detector, a high-performance metal detector designed for security. Compared with the traditional detector, the product adopts digital circuit design, consistent and stable performance, strong anti-interference ability, no calibration operation, the use of special design of the detector coil, more advanced sound, light, vibration alarm and other programmable technology, so that its sensitivity is higher, the alarm is more accurate, more energy saving, longer working time.


Product Details

Product Video

FDT-MS22 is our newly developed ultra-high sensitivity handheld metal detector, a high-performance metal detector designed for security. Compared with the traditional detector, the product adopts digital circuit design, consistent and stable performance, strong anti-interference ability, no calibration operation, the use of special design of the detector coil, more advanced sound, light, vibration alarm and other programmable technology, so that its sensitivity is higher, the alarm is more accurate, more energy saving, longer working time. The product combines the concept of high reliability and ergonomics to make it unique and unparalleled streamline design in similar products, beautiful appearance, elegant, easy to use, strong resistance, is an ideal product for checking illegal substances.

20240708022106100
2024070802462385

Technical Parameter

Size: 400x72x26(mm)
Weight: 280g
Power Source: No. 5 Battery x2 (section)
Power Dissipation: <50Mw
Material: ABS
Operating temperature: -25℃~+60℃(Relative humidity:0~95%)

Operation Instruction

Power on and off:Press the power button in the shutdown state, and when the green light is on, it will enter the working state. In the working state, press the power button, the green light is off, then enter the shutdown state.
Sensitivity regulation:When the sliding switch indicates that the “”gear indicates that the detection mode is low sensitivity at the shortest length, the detection mode is medium sensitivity at the middle length, and the detection mode is high sensitivity at the longest length.
Alarm mode adjustment:Boot default: sound + light alarm mode, then press the alarm mode button to enter the vibration + light alarm mode, then press the alarm mode button to enter the mode just started, and cycle in turn.
Indicator Description
Working indicator: In normal working state, the green is steady on.
Alarm light: The alarm light color is red when an active metal that can be detected is detected.
Low battery indicator: When the device is in the low battery state, the color of the working indicator is yellow.
Charging indicator light: the working indicator light is yellow when charging, and the light turns green after full charging.
Shutdown indicator: The working indicator is off when shutdown.

X-ray Generator

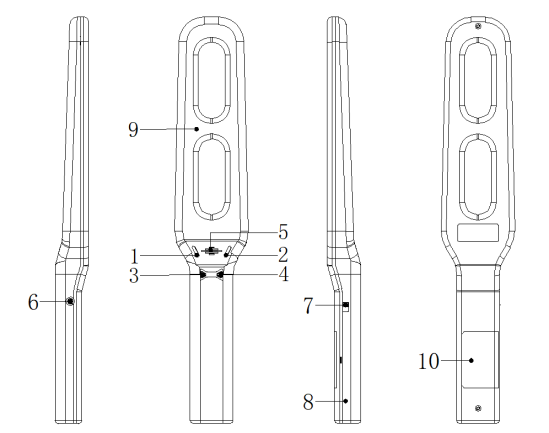

Part Description
1 Pilot Lamp
2 Horn Hole
3 Power Switch
4 Alarm mode adjustment (sound, vibration)
5 Sensitivity Regulation
6 Charging/Headphone jack
7 Battery Cover
8 Detection Area
9 Controller
10 Rope Hole
11 Alarm Light
2024070802505616
