X-ray Baggage Scanner FDT-SE10080

Short Description:

highway passenger station, express logistics points, boarding schools, vocational schools, tourism distribution centers, prison incoming materials inspection, public security checkpoints, military barracks, large-scale sports events, stadiums, passenger terminals, customs and border inspection, and other public places of product safety inspection.


Product Details

Product Video

Government buildings, courts, procuratorates, prisons, detention centers, public security checkpoints, military barracks, standard test rooms, boarding schools, vocational schools, large-scale event rentals, gymnasiums, museums, memorials, historical and cultural centers, Secondary highway passenger stations, wharfs, customs border entry and exit inspection, embassies, tourist attractions, entertainment venues, bars and other public places of product safety inspection.

202407100329343
2024071003022366

Packet drawing of a standard machine

2024071003031416

The packet map after installing AI judge map and liquid recognition function

General Specifications

Dimensions: 3050mm(L)×1365mm (W)×1544mm (H)
Tunnel size: 1005mm (W)×805mm (H)
Conveyor speed: 0.20-0.22m/s
Conveyor height: 304mm
Weight: 670Kg
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.8kVA

Basic Specifications

Penetration: 34mm Steel Plate
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
Through rate:720pcs/h
Dose per check:≤2.0μGy
Leak radiation dose rate:<0.5μGy/h
Noise: 52.3dB(A)

X-ray Generator

Generation direction: Top-Bottom
Tube voltage: 140~160kV Adjustable
Tube current: 0.3~1.2mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °

Image processing system

X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display

Feature

Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.

Quality

● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

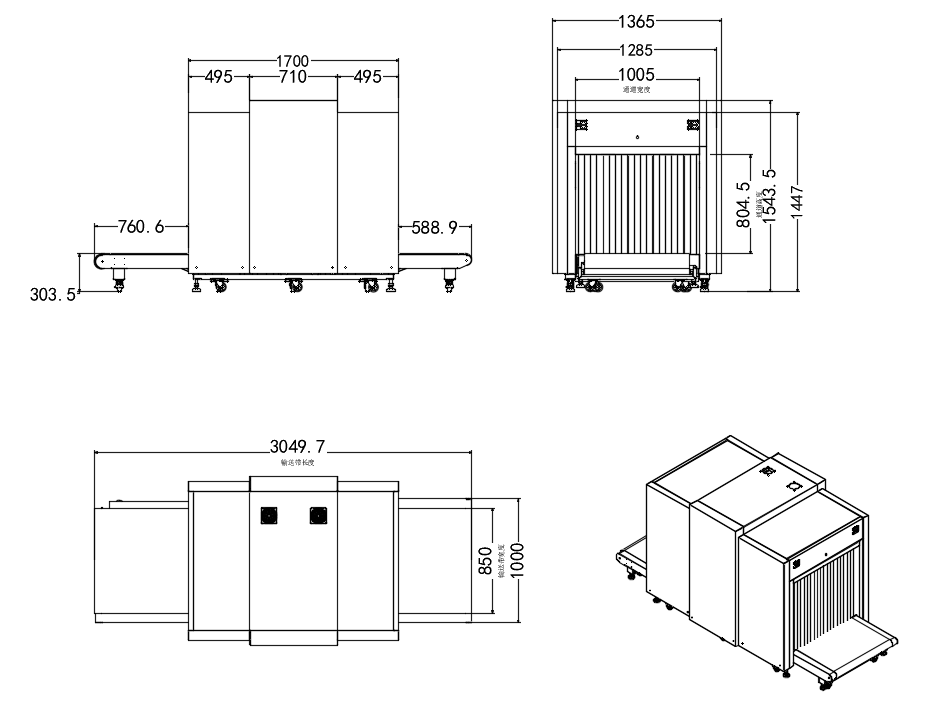

Size Specification

202407100336421

Case display

2024072205562416
2024072205572041
