Footwear Industry & Bags X-ray Detection Equipment FDT-XQC70100D

Short Description:

High energy ray generator ensures penetration through thick metal and clear image of sole.


Product Details

Product Video

Advantage

● High energy X-ray (50-100kv adjustable, 1.5ma)
High energy ray generator ensures penetration through thick metal and clear image of sole.
● Detection range
L-type sensor, internal inspection range expanded, no dead Angle.
● Generator system
External oil pump circulates heat dissipation to ensure continuous 24-hour operation and uninterrupted operation.

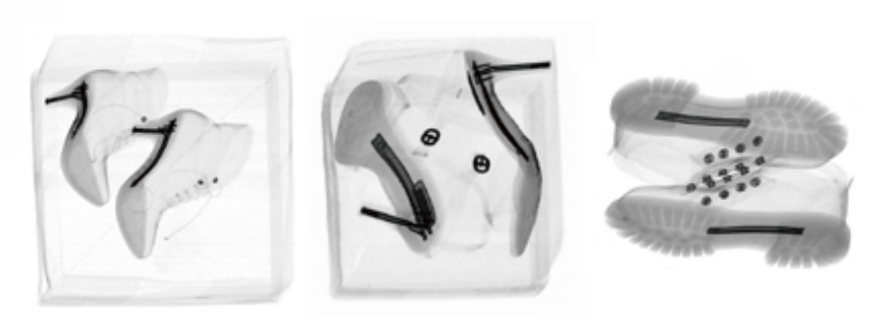

2024071003193991

Parameters

Tunnel size: 710mm (W) × 305mm (H)
Dimensions: 1940mm(L)×790mm(W)×1209.5mm(H)
Conveyor inspection speed: 0.2-0.6m/s Adjustable
Detection accuracy: line resolution 0.3mm (standard) / 0.2mm (typical)
Height of conveyor belt from bottom surface: 640.3mm
Radiation safety: close to air background

Function

● Black & white, Anti - image, Pull back, Amplification, Gray continuous scanning, Brightness adjustment, Sharpness adjustment
● Multiple USB ports;
● Inspected Qty management function: Inspected Qty, Defective goods quantity, Schedule management;
● Report function: Record customer name, Product name, Size, Qualified or not;
● Continuous inspection mode: Check 7600 boxes of ankle boots within 8 hours;
● Automatic one-key shutdown function: It only takes a key to turn the machine on and off;
● Image saving quantity: 2 million photos can be saved (JPG, BMP in different formats)
● Image/barcode printing function: Real-time printing
● Detection system: Capacitive integration technology, Low noise, Not afraid of hot flashes, Ensure smooth image & clear edge
● Image processing: Tomography technology, Make the whole picture (improve efficiency & see it at once)
● Image management: NG calibration, Storage in special folders (Customer named) after description of nonconforming products; Different customers and different operators save their own folders.

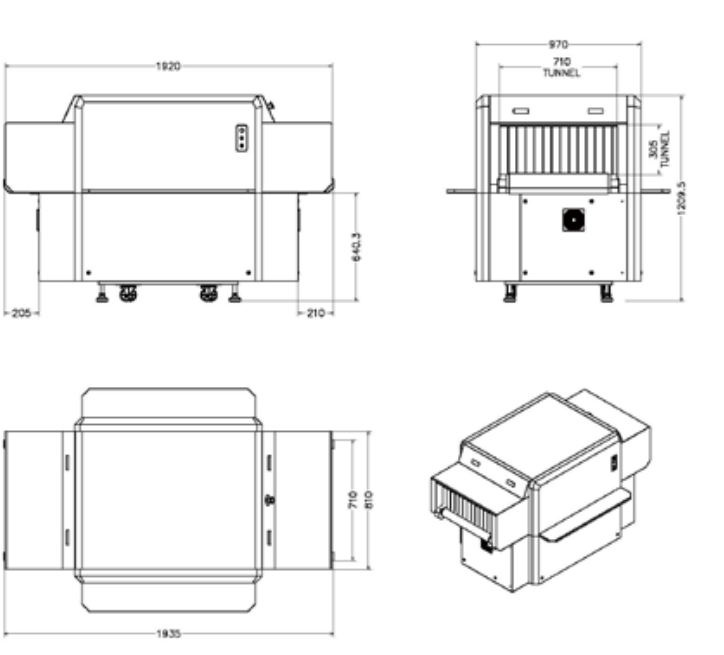

Boundary dimension

2024071003101399
