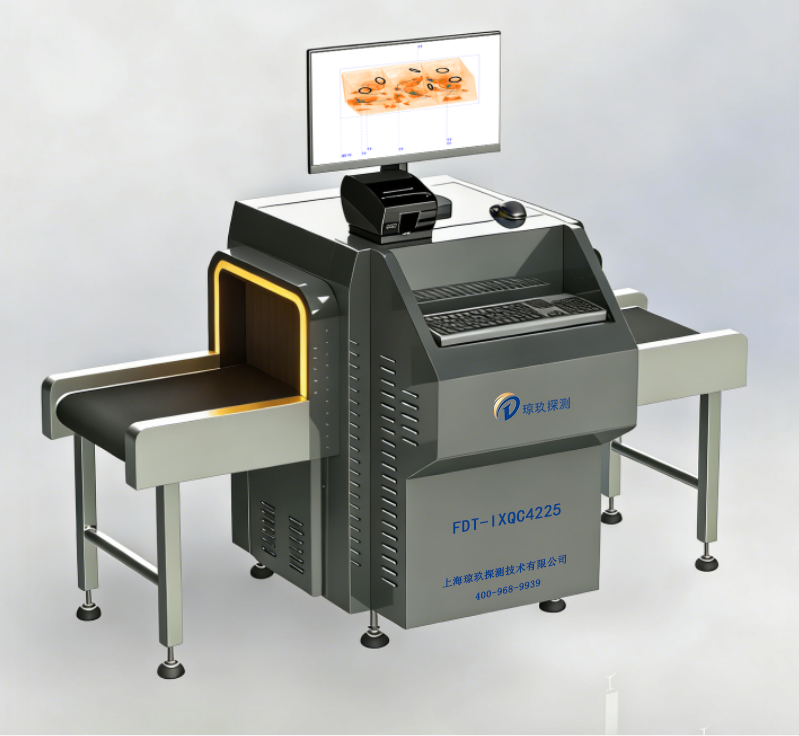

Intelligent X-ray Inspection Equipment FDT-IXQC4225
FDT-IXQC4225
Applicable to
Applicable to the garment industry: It is used in industries such as toys, apparel, shoes, bags and handbags to detect residual broken needles, nails, as well as product structure and adhesive bonding strength. It can identify metallic foreign objects in a variety of products, and check for misplaced or missing components. Its detection capability meets world-class standards.
Advantages
High energy: X-ray generator capable of continuous operation for 10-12 hours, ensuring stable production line workflow.
Clear imaging & large inspection range: Suitable for both single items and finished bags/luggage.
Single-source beam divergence angle up to 80°, no inspection blind spots.
High precision: Clearly displays broken needles and foreign objects of 0.3mm-0.8mm, meeting high-quality requirements of different customers.
Rich experience in building intelligent recognition models and databases, with an accurate recognition rate of over 98% and a false detection rate of less than 1.5%.
Parameters
Channel size: 425*261(mm)
Dimensions: L: 1740mm, W: 995mm, H: 1025mm
Inspection speed: Adjustable from 0.2-0.6m/s
Inspection precision: Wire resolution 0.3mm (standard) / 0.8mm (typical)
Conveyor height from ground: 640.3mm
Radiation safety: Close to ambient background radiation
Functions
Image processing: Black & white, reverse image, pull-back, zoom, continuous grayscale scanning, brightness adjustment, sharpness adjustment, etc.
Multiple USB ports.
Inspection quantity management: Tracks total inspected items, defective items, and inspection progress.
Report function: Records customer name, product name, size, and pass/fail status.
Continuous inspection mode: Inspects 7,600 pairs of short boots within 8 hours.
One-key automatic shutdown: Power on/off with one key.
Image storage: Stores up to 2 million photos (supports JPG, BMP formats).
Image/barcode printing: Real-time printing.sDetection system: Capacitive integration technology, low noise, resistant to humidity and heat, ensuring smooth, stable images with clear edges.Imaging technology: Tomographic scanning, full-image output (improves efficiency, full view at once).
Image management: NG calibration, dedicated folders for defective items (customizable names), separate storage for different customers and operators.
Audible-visual & graphic intelligent alarm.

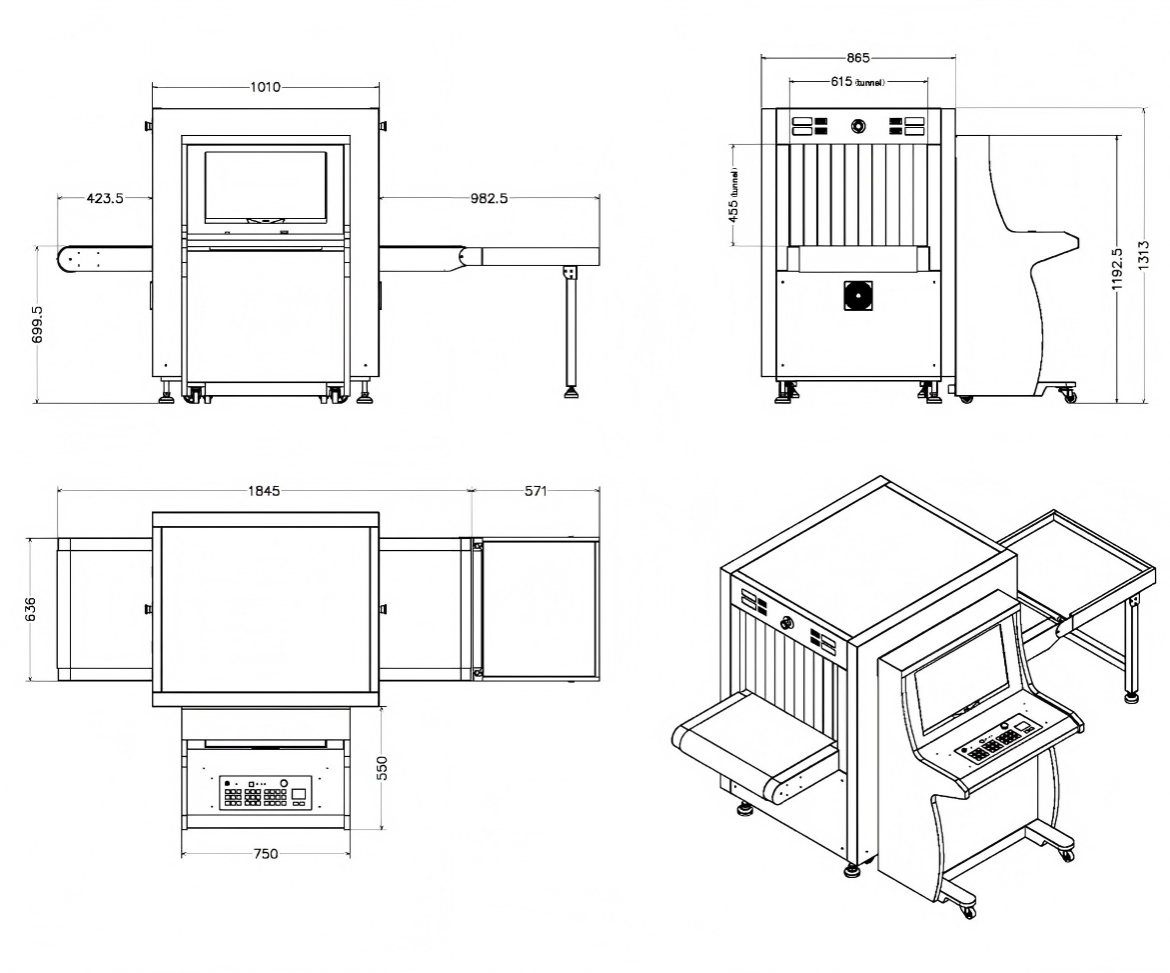

Equipment Dimensions
-
