Vehicle safety inspection system is mainly detected at the bottom of the vehicle to find out the hidden quickly and accurately in the bottom of contraband and illegal immigration and smuggling personnel, quicker and more accurately than the traditional bottom inspection mirror, greatly improving the vehicle safety inspection speed and accuracy, reducing investment in human resources.

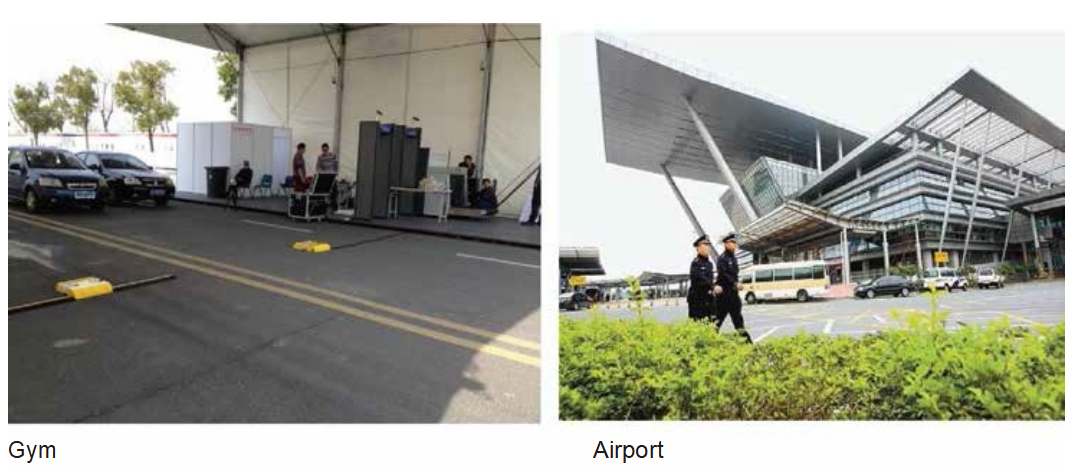

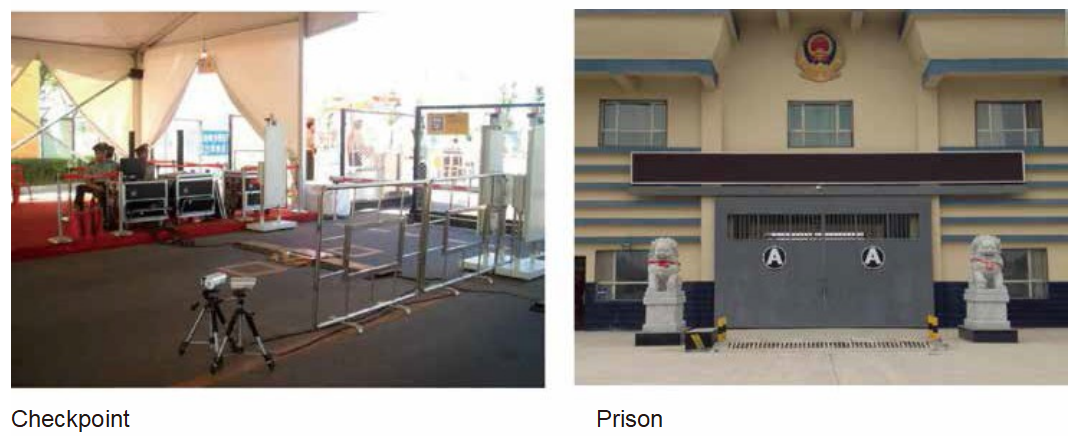

● Airport, prison house, customs and other government departments ,as well as the large public parking entrance where to check whether the car have Contraband.
● Large events, and the checking of entrance of the exhibition for the safety inspection of vehicles.
● Using for Security inspection, explosion-proof, army vehicles at the bottom.
1) Using Line Array CCD Scanning Technology Dynamic Imaging;
2)Scan resolution: 2048 line CCD;
3)Chassis storage or loading time: < 1 second;
4)The bottom image display: a horizontal display;
5)Chassis image storage format: Standard BMP image format or JPEG;
6)System interface language: can be customized;
7)Display resolution: To adapt a variety of display resolution;
8)Transmission interface of the bottom image data: RJ45 network;
9)Display of scene image: ≥1 road;
10)The test of Image retrieval function: store the bottom of car and the image of license plate according to Information retrieval of the date ,time and license plate number;
11)Resolution of the bottom image: >12000 * 6144;
12)The bottom image automatic shooting: when vehicle speed to 1-50km/h through the under-body scanner, system will display the image in the 1s, while the vehicle in the under-body scanner image acquisition region stillness must time continue to through the under-body scanner and bottom images show the intact.
13)Automatic image storage, delete functions: automatic deletion of expired pictures.
14)Image quality adjustment function: The adjustment of saturation, contrast, balance, sharpness for under-body or license plate image; And carrying out amplification and reduce . the amplification factor is 16, and can be used to enlarge the local display.
1.Scan mode: full auto, non external trigger condition scan mode
2.The maximum of scan rate: 18kHz
3.The detection speed: 1-60km/h, advise ≤ 30km/h;
4.Field of view: 170 degrees
5.Scanner data line: 10 m; (customizable length)
6.Auxiliary lighting: 160W
7.Lighting components: two single sealed LED surface light source; life: 50000h
8.The bottom image scanner: using a unique open wide design of field of vehicle image acquisition technology
9.Load capacity:>30T
10.Waterproof level: IP68 meet all day work
11.Scanning device weight: 28KG
12.Scanning device volume :450 x 400 x 88mm
13.Communication interface: RJ45
14.Storage temperature;-40°~75°
15.Operating temperature: -10° ~+60°
16.Operating power : 110-240V AC,50-60HZ
1.Monitor: 22 bits real colors
2.CPU:INTEL Quad Core Processor
3.Motherboard: Special Board
4.Memory: DDR3, greater than 2GB
5.HD: 500G high speed hard drive
6.Graphics: 192BIT, DDR3 independent graphics card
7.Appearance: aluminum alloy composite material
8.Operation power :AC220V 50/60Hz
9.Operation electrity:3A
10.Data transmission cable length: 10M
1.The module of standard 1 license plate recognition can be extended to 2 or more matching;
2.The single character recognition accuracy rate: ≥ 99%;
3.Average recognition time: <20m/s
4.Entire brand recognition accuracy: ≥95%
5.Horizontal tilt angle of license plate image: -10 ~ +10 degree;
6.Character recognition accuracy (except Chinese characters): ≥ 93%
7.Noise:>48db
No. |
Device Name |
Quantity |
Brief Introduction |
Remarks |
1
|
Vehicle Chassis Imaging Equipment
|
1 set
|
1.Car Camera |
|
2.The Under body-Scanner Shell | ||||
3.Lighting Equipment | ||||
4.Vehicle Detector | ||||
2
|
Operation Case
|
1 set
|
1.System Host and Display |
|
2.Operation Case | ||||
3 | Software for Vehicle Chassis
Safety Inspection System |
1 set | ||
4 | The License Plate Capture Camera | 1 set | Dia.50mm Galvanized Pipe | Domestic License Plate Recognition Software |
5 | Pavement Rubber Bump |
