X-ray Baggage Scanner FDT-SE150180D

Short Description:

FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.


Product Details

Product Video

Applicable to

FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.

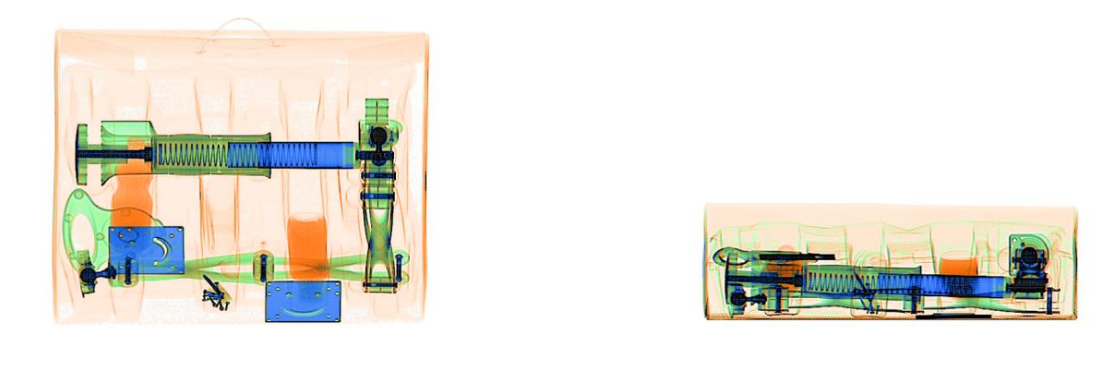

2024070907264495

General Specifications

Dimensions: 5130mm(L)×2725mm (W)×2429mm (H)
Tunnel size: 1510mm (W)×1810mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 350mm
Weight: 3500Kg
Storage temperature / humidity:
-40 ℃ ± 3℃ ~ +60℃ ± 2℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40℃ ± 2℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 2KVA

Basic Specifications

Penetration: 46mm Steel(200KV) 58mm Steel(260KV)
Plate Wire resolution: 40AWG
Penetration resolution: 30AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm

X-ray Generator

Generation Direction: Top-Bottom & Side-Side
Tube voltage: 200 kV
Adjustable Tube current: 1.0 mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
X-ray leakage <0.1µGy/h

Configuration

International brand electrical components Industrial PLC circuit control.
Capacitance integral analog conversion, clear image Industrial computer, long-term stable and reliable system Ergonomic principle reading system.
Radiation protection system (close to natural background).

Image Processing

Color / black&white, Organic / inorganic, Super enhancement, Edge enhancement, Partial enhancement, Grayscale scanning, Image restoration, Zoom in / out, High / low energy penetration, Continuous observation, Playback (50), Image storage(>100,000 pic.)

Others

One key shut-down,
High density alarm,
Drug and explosive powder detection
Built-in Automatic self-diagnosis

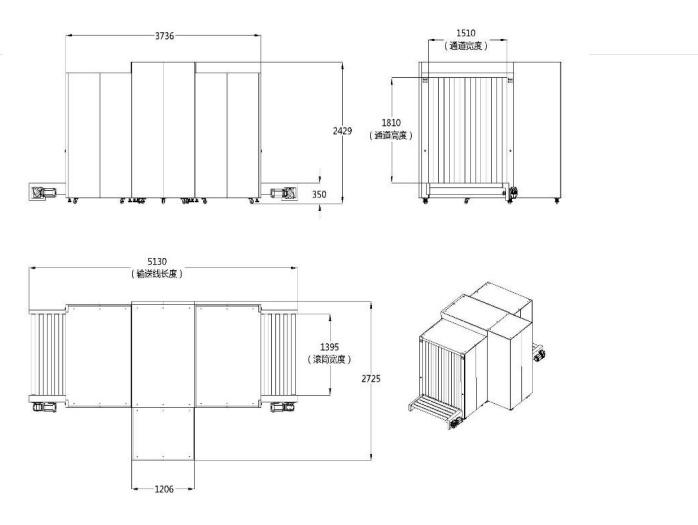

2024070907352632

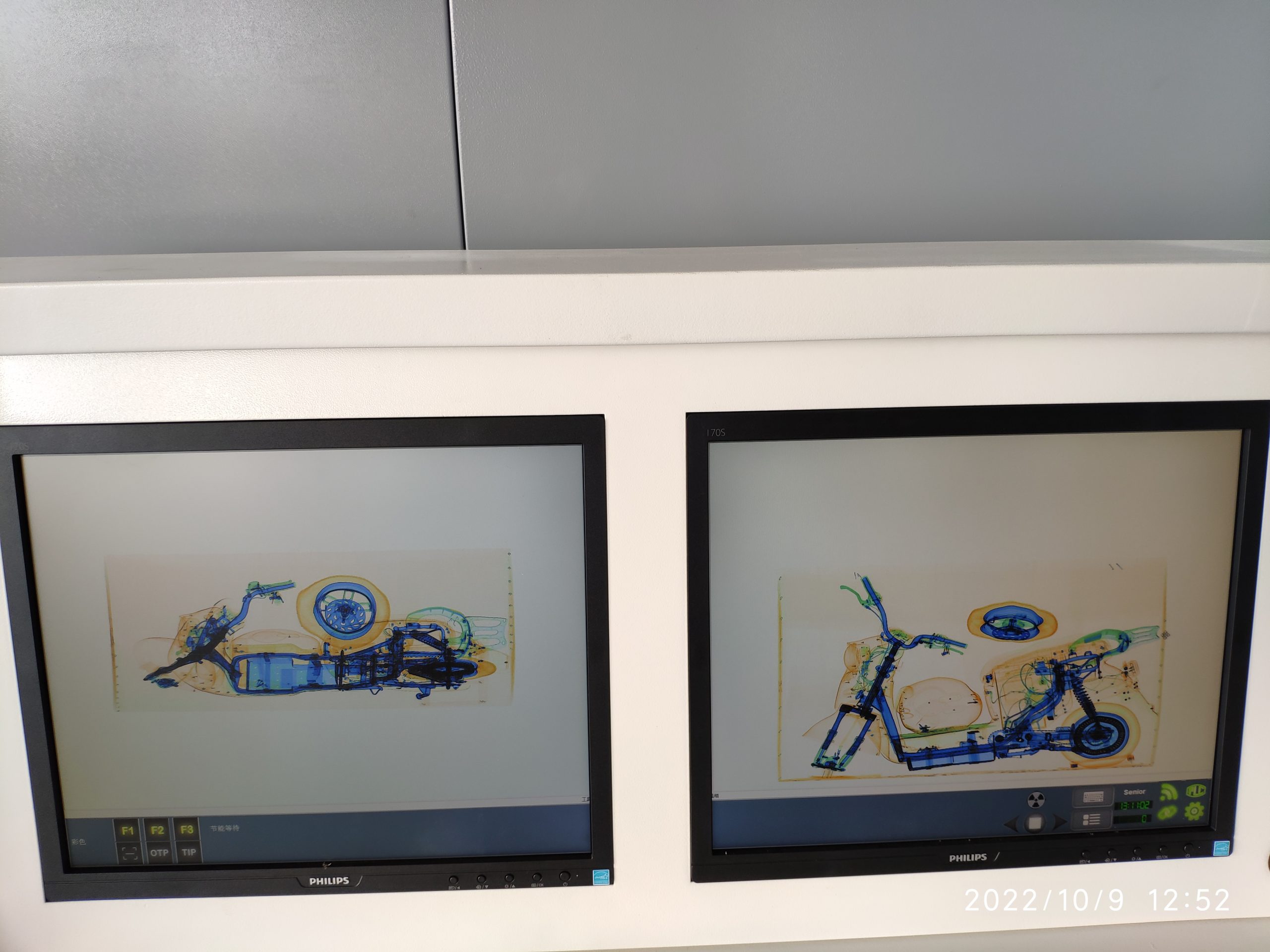

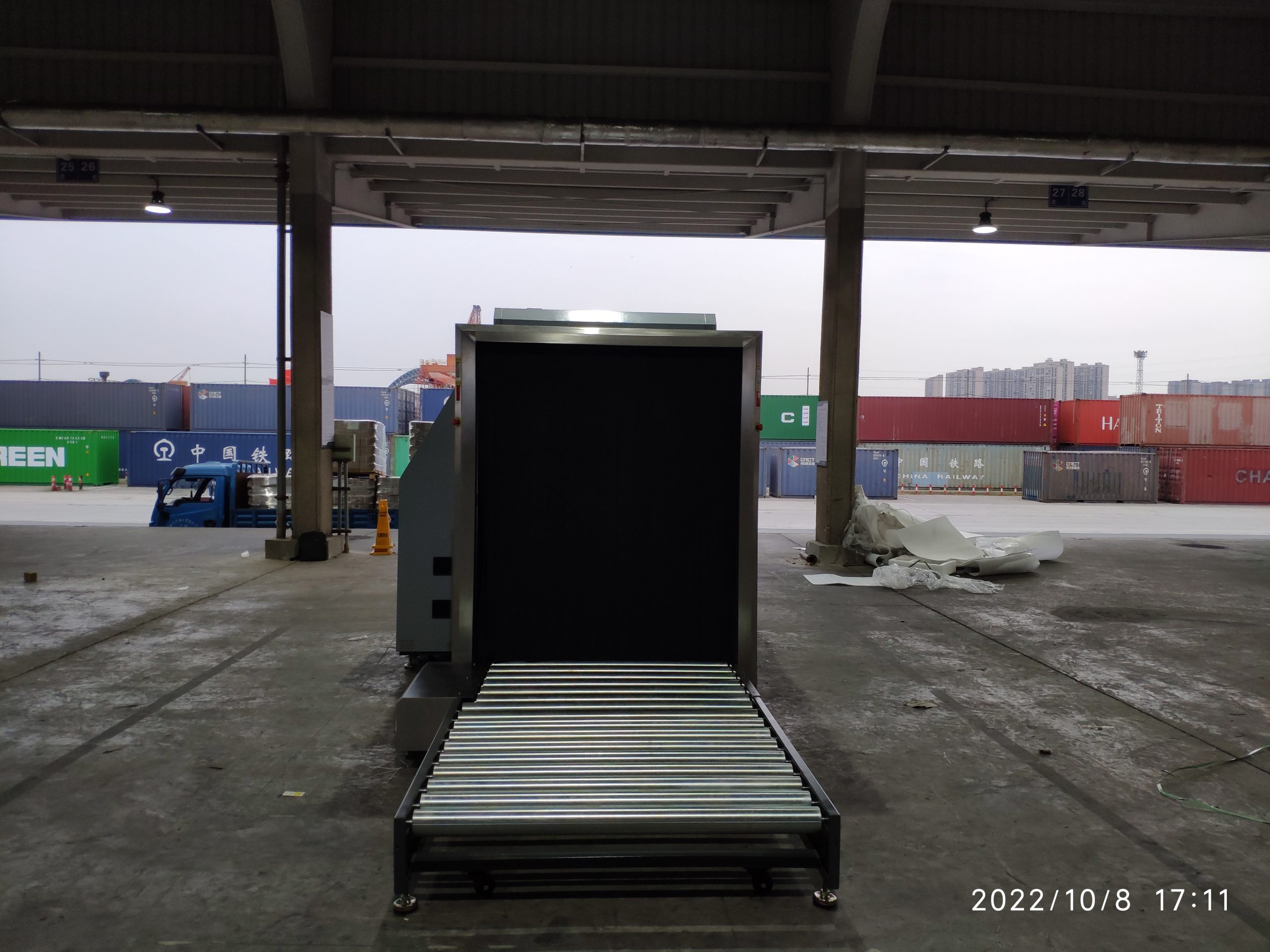

Case display

2024072207122312
2024072207130160
