X-ray Baggage Scanner FDT-SE6040

Short Description:

This is mostly used for foreign trade customers: airports, subways, courts, procuratorates, prisons, stadiums, pavilions, museums, memorials, ambassadors, consulates, hospitals, tourist attractions, entertainment casinos and other public places of product safety inspection.


Product Details

Product Video

Applicable to

This is mostly used for foreign trade customers: airports, subways, courts, procuratorates, prisons, stadiums, pavilions, museums, memorials, ambassadors, consulates, hospitals, tourist attractions, entertainment casinos and other public places of product safety inspection.

X-ray imaging

Packet drawing of a standard machine

2024071002432713

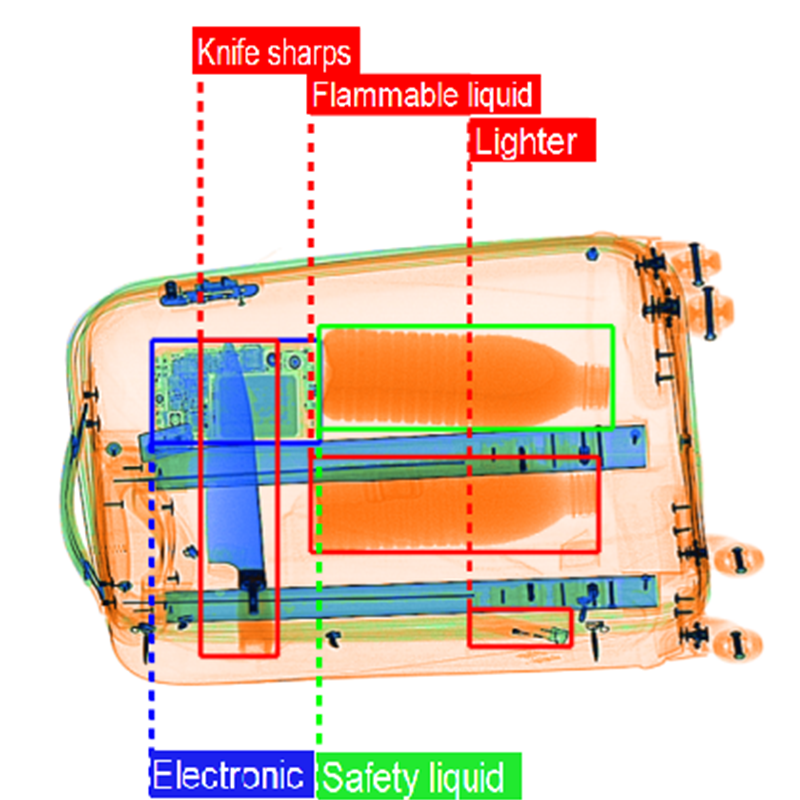

The packet map after installing AI judge map and liquid recognition function

General Specifications

Dimensions: 1845mm(L)×865mm(W)×1313mm(H)
Tunnel size: 615mm (W) × 454mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 700mm
Weight: 354Kg
Storage temperature / humidity:
-40 ºC ± 3 ºC ~ +60 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ºC ± 3 ºC ~ + 40 ºC ± 2 ºC / 5% ~ 95%  (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.5kVA

Basic Specifications

Penetration:38mm Steel
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution:horizontal Ф1.0mm vertical Ф1.0mm
Through rate:720pcs/h
Dose per check:≤1.9μGy
Leak radiation dose rate:<0.5μGy/h
Noise: < 54db

X-ray Generator

Generation direction: Bottom-Top
Tube voltage: 140~160kV Adjustable
Tube current: 0.3~1.2mA Adjustable
Cooling mode/ duty cycle: sealed oil / 100%
Generation angle: 80 °

Image processing system

X-ray sensor:Multi-energy L-shaped photodiode detector, organic matter is shown in orange, inorganic matter is shown in blue, mixture is shown in green.
Display:24 "Philips HD LCD display

Feature

Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.

Auxiliary function

One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.

Extended function

AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.

Quality

● International brand electrical components
● Industrial PLC circuit control, electromagnetic compatibility special requirements
● Capacitor integral analog-digital conversion, the image is clear and subtle
● Industrial computer, the system is stable and reliable for a long time
● human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background

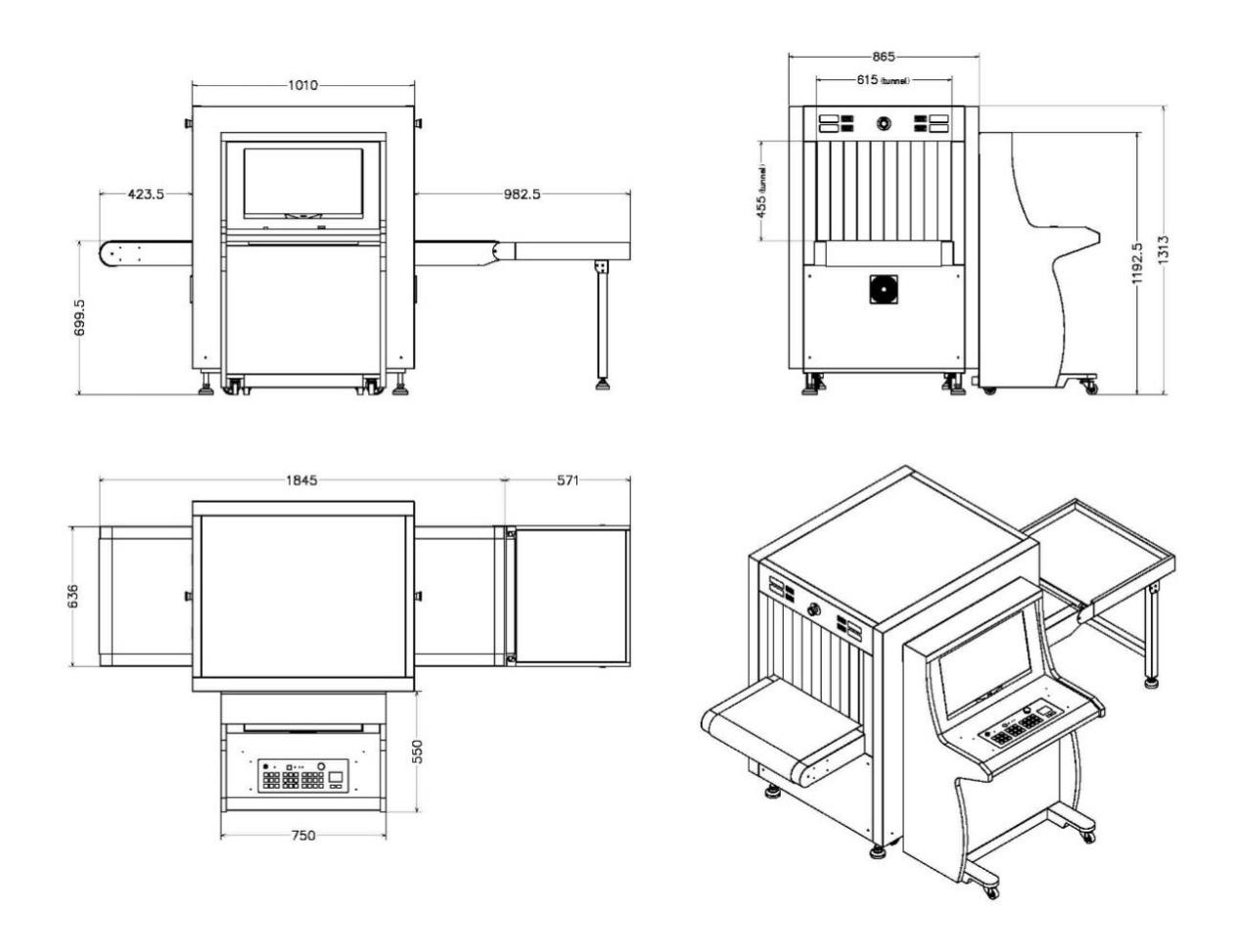

Dimension

2024071002485245

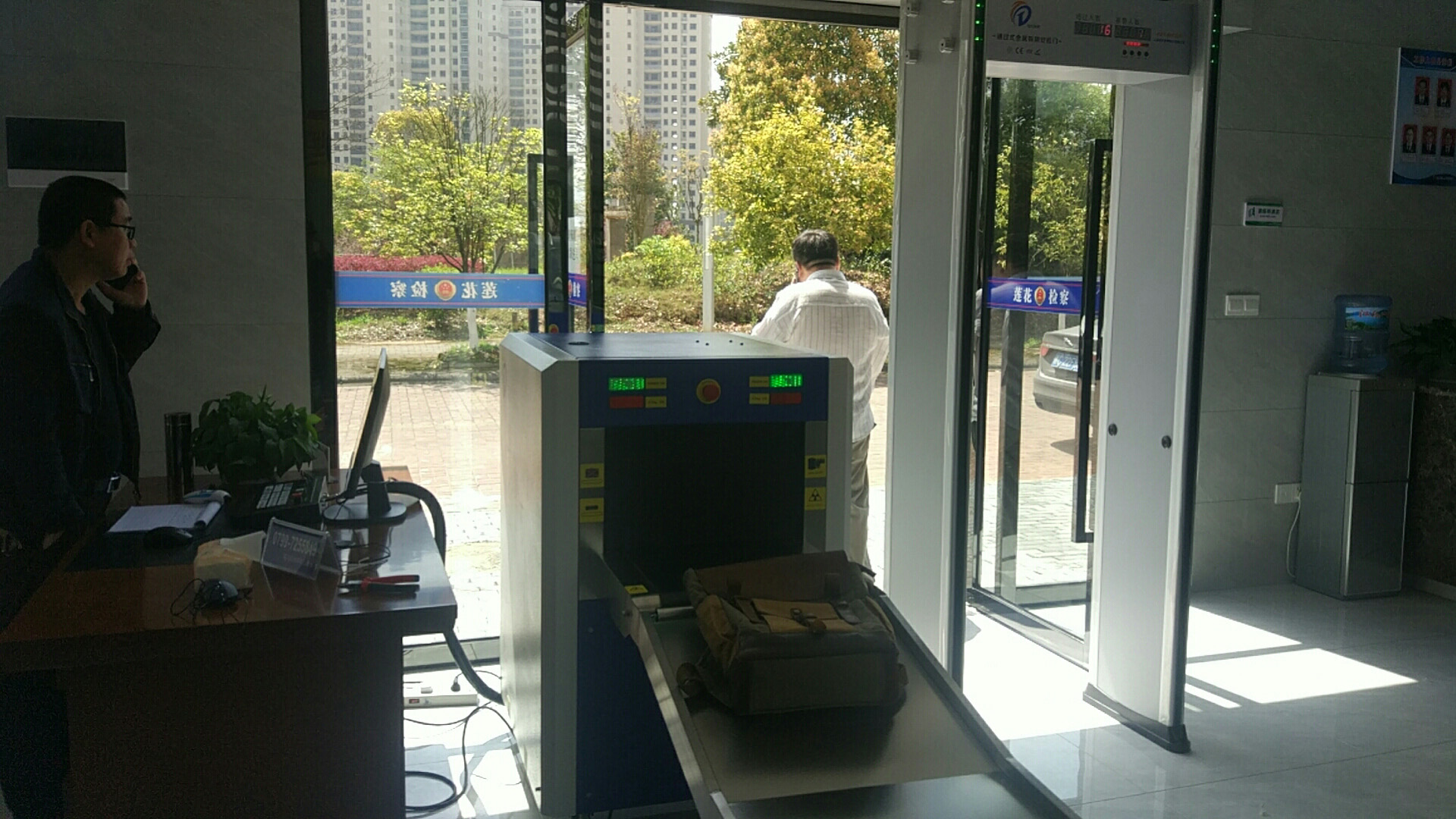

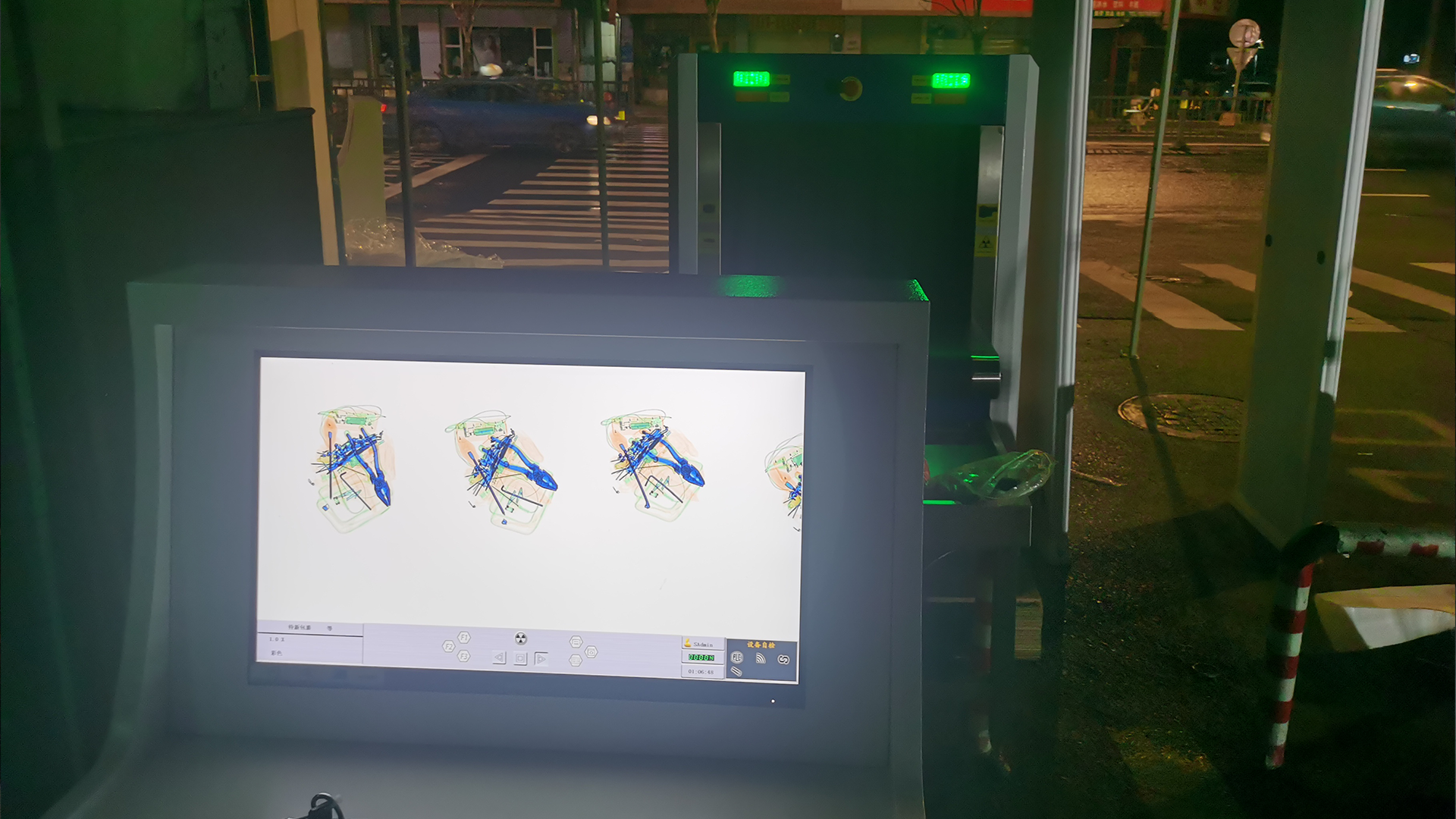

Case display

2024072205513885
2024072205515637
