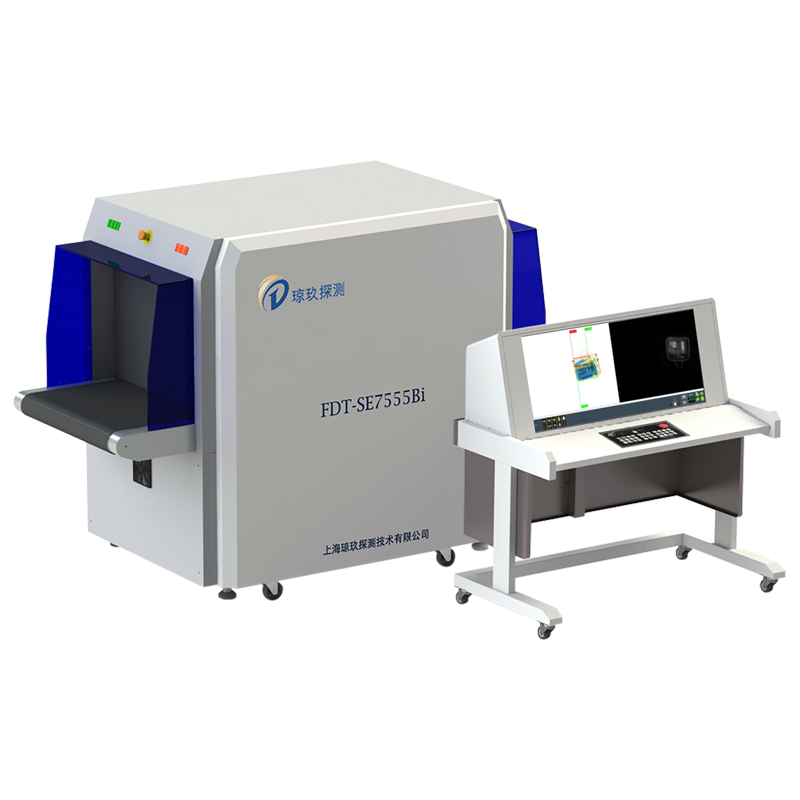

X-ray Baggage Scanner with Both Dual Energy Fluoroscopy and Backscatter Integrated Function FDT-Bi7555

Short Description:

Subway, airport border entry and exit, customs inspection and quarantine, intermediate/high court, public security anti-drug checkpoint, tobacco smuggling inspection, prison drug rehabilitation and other places of security and drug and explosive inspection.


Product Details

Product Video

Applicable to

Subway, airport border entry and exit, customs inspection and quarantine, intermediate/high court, public security anti-drug checkpoint, tobacco smuggling inspection, prison drug rehabilitation and other places of security and drug and explosive inspection.

2024070908594238

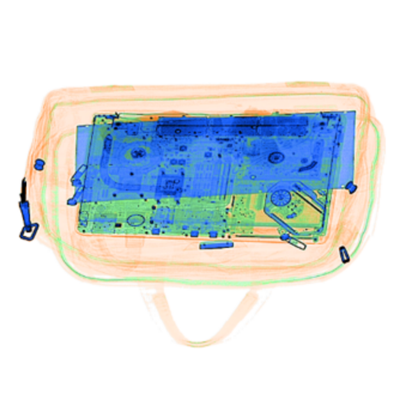

The transpacket view in X-ray perspective

2024070908594319

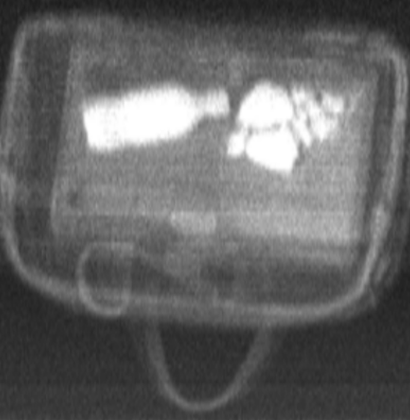

Overshoot in backscatter line perspective (Can clearly see the organics obscured by the electronics)

General Specifications

Dimensions: 2150(L)×1037mm (W)×1460mm (H)
Tunnel size: 755mm (W)×555mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 745mm
Weight: 520Kg
Storage temperature / humidity:
-40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95%  (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.67kVA

Backscattering Parameter

Penetration thickness of backscatter steel plate: ≥6mm
Polyethylene wire to wire width: ≤5mm
Polyethylene rod diameter: ≤2mm
Single solid core copper wire diameter: ≤2mm
Resolution of polyethylene test card: ≤10%

Basic Specifications

Penetration: 30mm Steel Plate(140kV) 40mm Steel Plate(160KV)
Wire resolution: 40AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.0mm vertical Ф1.0mm
Through rate:720pcs/h
Dose per check:≤2.6μGy
Leak radiation dose rate:<0.5μGy/h
Noise: 54dB(A)

X-ray Generator

Generation direction: Bottom-Top
Tube voltage: 140~160kV Adjustable
Tube current: 0.4~1.5mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °~110°

Image processing system

X-ray sensor
L-shaped photodiode detector
Backscatter detector
Display : 2 pcs 24 "HD LCD display

Feature

Image processing function
Color/black and white, organic/inorganic (cull), high energy/low energy penetration, super enhancement, edge enhancement, gray scanning, super penetration, reverse display, image recovery, image magnification, image reduction, local magnification, image pullback, ultra-thin scanning, image saving (greater than 100,000 pieces), etc.
Auxiliary function
One-button shutdown function, penetration alarm, explosive/drug assistance detection function, power-on self-test, etc.
Extended function
AI intelligent identification, automatic identification of dangerous liquids, energy-saving automatic dormancy, camera monitoring.

Backscatter images and functions

1. Organic matter imaging display: the image only shows the organic matter such as carbon, hydrogen, oxygen and nitrogen in the reported baggage, and the inorganic matter such as iron, aluminum, copper, lead and silicon are not displayed. Good for check drugs,and good for check explosives.
2. Explosives such as C4 (plastic explosion), nitroglycerin, detonators, black powder and other automatic identification, voice sound and light alarm.
3. Drugs such as heroin, methamphetamine and other automatic recognition, voice sound and light alarm.
4. Automatic identification and alarm if there is nuclide in luggage.
5. Continuous magnification, local magnification, high/low energy penetration, image pullback, image saving (> 100,000 pieces)

Quality

● International brand electrical components.
● Industrial PLC circuit control, electromagnetic compatibility special requirements.
● Capacitor integral analog-digital conversion, the image is clear and subtle.
● Industrial computer, the system is stable and reliable for a long time.
● Human engineering principle reading system, anti-fatigue
● Radiation protection: close to air background.

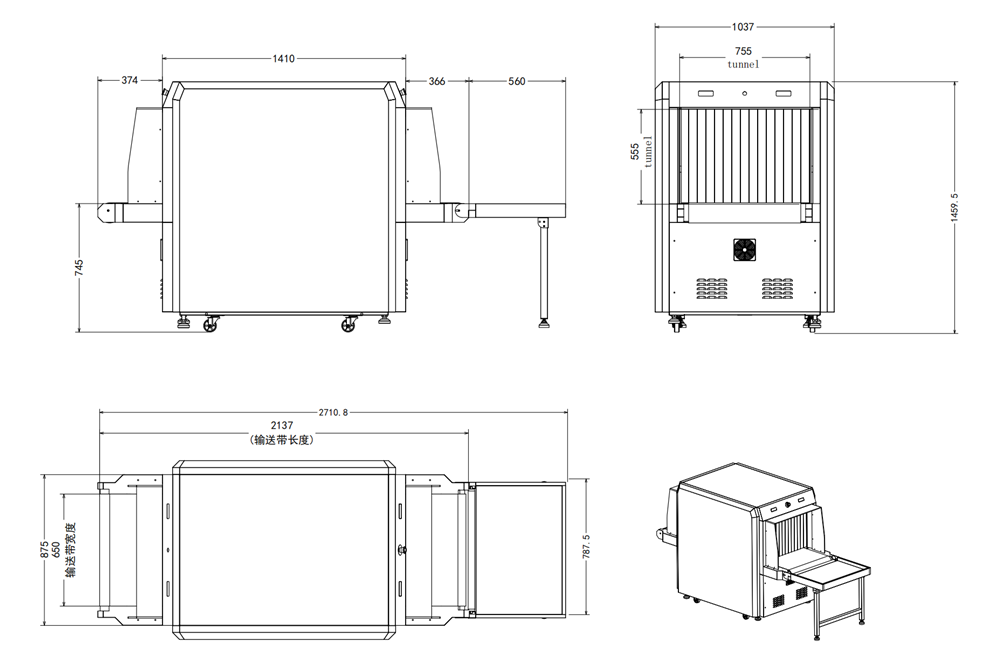

Size Specification
