FDT-SE6550THV Three-source Three-view X-ray Inspection Equipment
FDT-SE6550THV is a new generation of intelligent multi-view luggage and item inspection system independently developed by Shanghai Fjade Detection Technology Co., Ltd. It integrates advanced multi-view detection technology and dual-energy material identification technology, enabling automatic identification and alarm of explosives, hazardous liquids, pressure tanks, controlled knives, firearm contraband, and exotic organisms hidden in inspected items. It can be widely used in security inspection scenarios such as border checkpoints, customs, rail transit, and postal logistics.
General Specifications
Overall Dimensions: 2506mm (Length) × 1320mm (Width) × 1443mm (Height)
Tunnel Dimensions: 660mm (Width) × 505mm (Height)
Conveyor Speed: 0.24 m/s - 0.6 m/s (adjustable)
Conveyor Height: 685 - 700mm (adjustable)
Uniform Load Capacity of Conveyor Belt: 200kg
Weight: 880Kg
Storage Temperature / Relative Humidity: -40℃±5℃ to +60℃±5℃ / 5% - 95% (non - condensing)
Operating Temperature / Relative Humidity: 0℃±5℃ to +40℃±5℃ / 5% - 95% (non - condensing)
Power Supply: AC 220V (-10% to +10%), 50Hz±3Hz
Rated Power: 1.5kVA
Basic Specifications
Penetration Ability: 40mm steel plate
Spatial Resolution: Horizontal Ф1.0mm, Vertical Ф1.0mm
Line Resolution: 36AWG
Penetration Resolution: 32AWG
Single Inspection Dose: ≤2.9μGy
Leaked Radiation Dose Rate: ＜0.5μGy/h
System Noise: 52.6dB(A)
Monitors: 3*24 - inch high - definition monitors with a resolution of up to 1920*1080
Functions
Image Processing Functions: Color/B&W, Organic/Inorganic (Exclusion), Super Enhancement, Edge Enhancement, Local Enhancement, Grayscale Scanning, Image Restoration, Reverse Display, Continuous Zoom, Local Zoom, High/Low Energy Penetration, Image Rewind, Image Saving (over 100,000 images), etc.
Auxiliary Functions: Supports bidirectional scanning, one - key shutdown function, impenetrability alarm, auxiliary inspection for explosives/drugs, power - on self - test, hardware maintenance and diagnosis prompt, etc.
Extended Functions: AI Intelligent Recognition, Automatic Identification of Hazardous Liquids, Energy - saving Automatic Sleep, Camera Monitoring.
Technical Features
◆ Automatic Image Judgment and Alarm Function: It can automatically identify and alarm explosives, hazardous liquids, pressure tanks, controlled knives, firearms, exotic organisms, etc., and has a function for adding and training contraband types.u

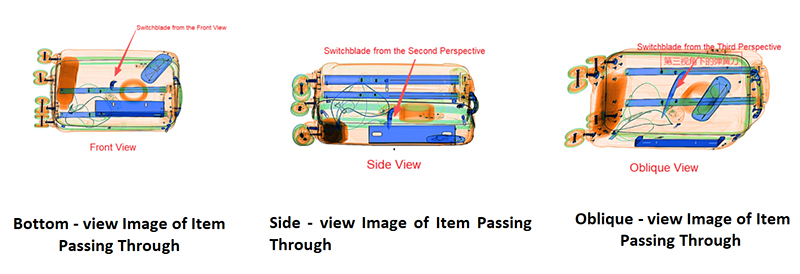

◆Multi - view Detection Technology: It can provide high - definition color 2D images from 3 views, avoiding difficulties in image recognition caused by item overlap, occlusion and other factors.u
◆Dual - energy Material Identification Technology: It can assign different colors to organics, inorganics and mixtures, enabling quick identification of substance properties and improving image judgment efficiency.

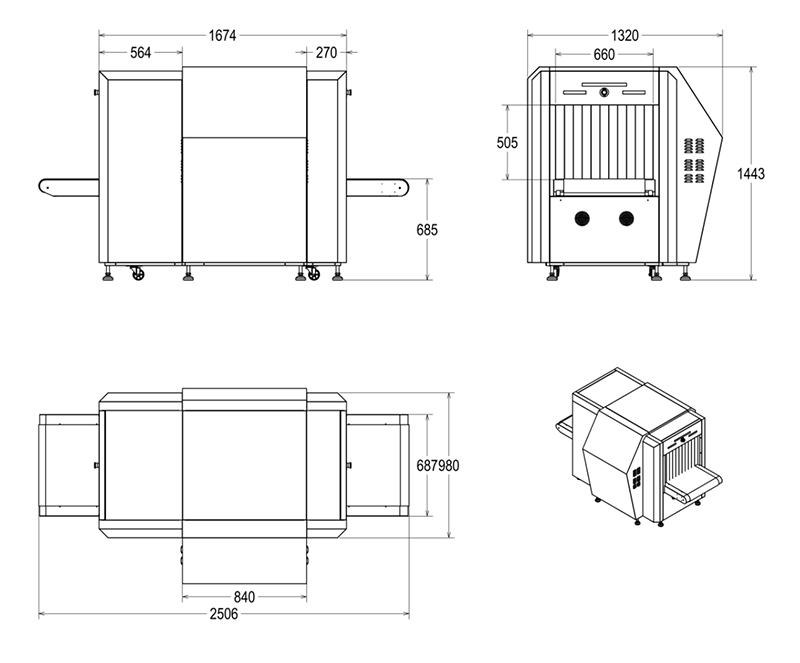

Overall Dimensions
-
