X-ray Baggage Scanner FDT-SE150180
FDT-SE150180
Applicable to
FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.
General Specifications
Dimensions: 5130mm（L）×2725mm (W)×2429mm (H)
Tunnel size: 1510mm (W)×1810mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 350mm
Weight: 3500Kg
Storage temperature / humidity:
-40 ℃ ± 3℃ ~ +60℃ ± 2℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40℃ ± 2℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 2KVA
Basic Specifications
Penetration: 40mm Steel(160KV) 46mm Steel(200KV) 60mm Steel(250KV)
Plate Wire resolution: 40AWG
Penetration resolution: 30AWG
Spatial resolution: horizontal Ф1.3mm vertical Ф1.3mm
Single Scan Dose: ≤ 1.95 μGy(160KV) ≤ 2.55 μGy(200KV) ≤ 3.98 μGy(250KV)
Leakage Radiation Dose Rate: < 0.5 μGy/h
System Noise: 56 dB(A)
X-ray Generator
Generation Direction: Side-Side
Tube voltage: 160/200/250 kV
Adjustable Tube current: 1.0 mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
X-ray leakage <0.1µGy/h
Configuration
International brand electrical components Industrial PLC circuit control.
Capacitance integral analog conversion, clear image Industrial computer, long-term stable and reliable system Ergonomic principle reading system.
Radiation protection system (close to natural background).
Image Processing

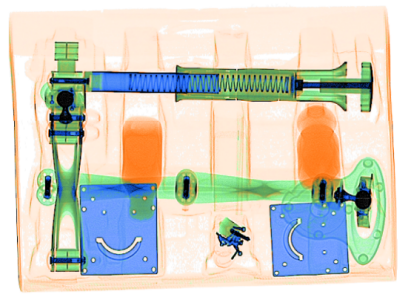

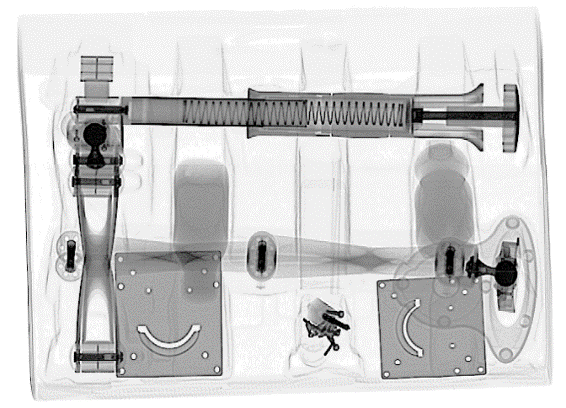

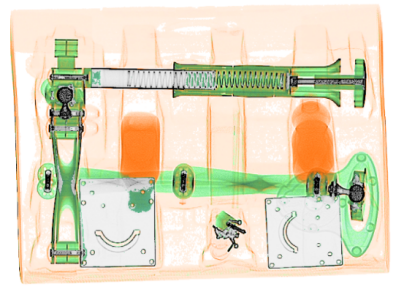

Color / black&white, Organic / inorganic, Super enhancement, Edge enhancement, Partial enhancement, Grayscale scanning, Image restoration, Zoom in / out, High / low energy penetration, Continuous observation, Playback (50), Image storage（>100,000 pic.)
Others
One key shut-down,
High density alarm,
Drug and explosive powder detection
Built-in Automatic self-diagnosis
Extended Functions
AI intelligent recognition,
Automatic hazardous liquid detection,
Energy-saving auto-sleep,
Video surveillance
