X-ray Baggage Scanner FDT-SE150150D
Applicable to
FDT X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.

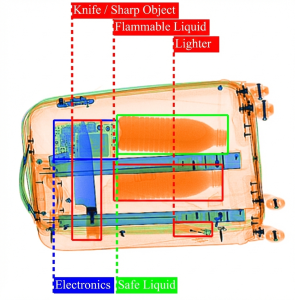

Bottom-View Baggage Scan Image

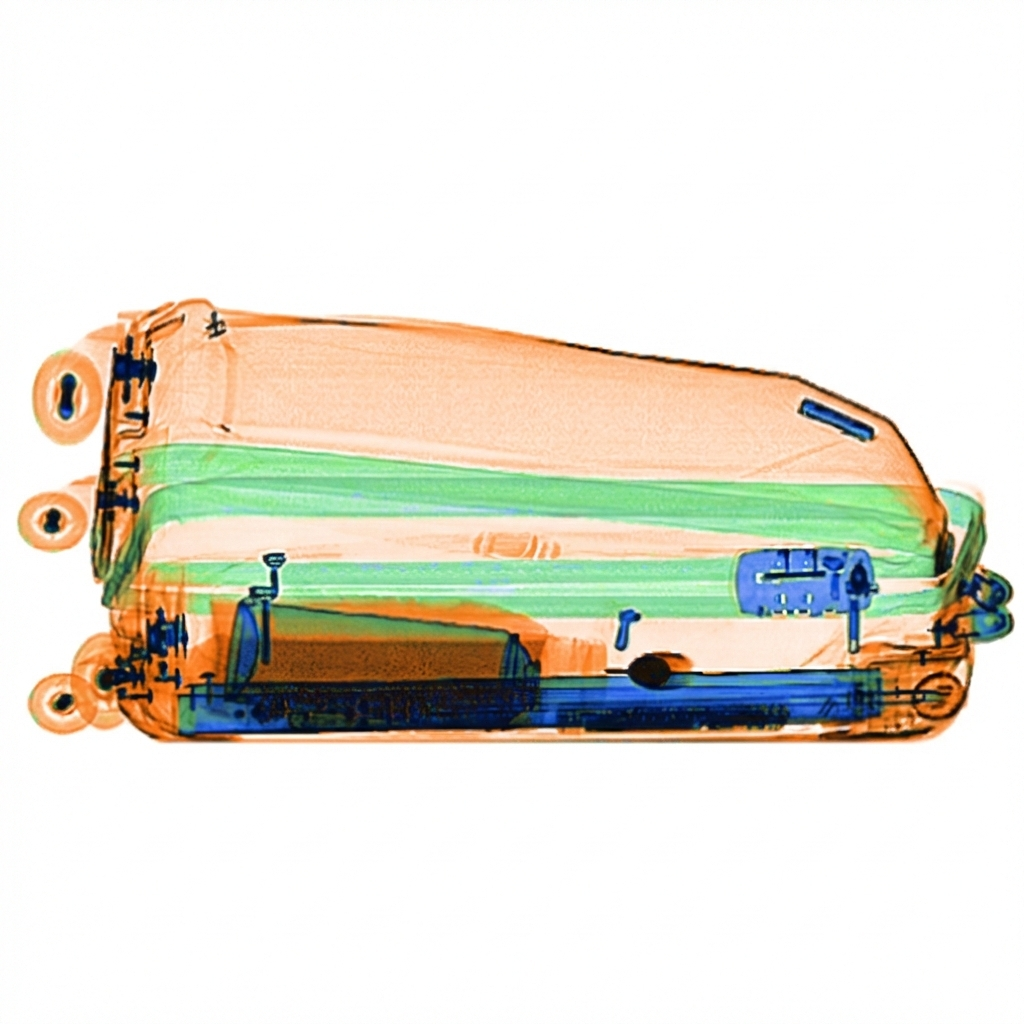

Side-View Baggage Scan Image
Equipped with AI image recognition and liquid detection functions
General Specifications
Dimensions: 4803mm（L）×2390mm (W)×2330mm (H)
Tunnel size: 1500mm (W)×1500mm (H)
Conveyor speed: 0.20/0.40/0.60 m/s
Conveyor height: 350mm
Conveyor Uniform Load Capacity: 1000 kg
Weight: 4000Kg
Storage temperature / humidity:
-40 ℃ ± 3℃ ~ +60℃ ± 2℃ / 5% ~ 95% (no condensation)
Operating temperature / humidity:
0 ℃ ± 3 ℃ ~ + 40℃ ± 2℃ / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 1.6KVA
Basic Specifications
Penetration: 34mm
Plate Wire resolution: 36AWG
Penetration resolution: 32AWG
Spatial resolution: horizontal Ф1.3mm vertical Ф1.3mm
Single Scan Dose: ≤ 2.9 μGy
Leakage Radiation Dose Rate: < 0.5 μGy/h
System Noise: 54.6 dB(A)
X-ray Generator
Generation Direction: Top-Bottom & Side-Side
Tube voltage: 200 kV
Adjustable Tube current: 0.3-1.2 mA Adjustable
Cooling/ duty cycle: sealed oil / 100%
X-ray leakage <0.1µGy/h
Image Processing System
Configuration
International brand electrical components Industrial PLC circuit control.
Capacitance integral analog conversion, clear image Industrial computer, long-term stable and reliable system Ergonomic principle reading system.
Radiation protection system (close to natural background).
Image Processing
Color / black&white, Organic / inorganic, Super enhancement, Edge enhancement, Partial enhancement, Grayscale scanning, Image restoration, Zoom in / out, High / low energy penetration, Continuous observation, Playback (50), Image storage（>100,000 pic.)
Others
One key shut-down,
High density alarm,
Drug and explosive powder detection
Built-in Automatic self-diagnosis
Extended Functions
AI intelligent recognition,
Automatic hazardous liquid detection,
Energy-saving auto-sleep,
Video surveillance
