Hazardous Liquid DetectorFDT-TQD16

Short Description:

This is a desktop hazardous liquid detector is a new generation of liquid safety inspection equipment. Adopts ultra-wide band pulse microwave reflection method and thermal conductivity method, non-contact sampling method, suitable for the inspection of various common packaging liquids such as glass, plastic, metal, ceramic, etc., and can Automatically detect and easily detect without opening the liquid container. Flammable, explosive, corrosive and dangerous liquid, the identification and judgment rate is accurate and efficient.


Product Details

Product Video

This is a desktop hazardous liquid detector is a new generation of liquid safety inspection equipment. Adopts ultra-wide band pulse microwave reflection method and thermal conductivity method, non-contact sampling method, suitable for the inspection of various common packaging liquids such as glass, plastic, metal, ceramic, etc., and can Automatically detect and easily detect without opening the liquid container. Flammable, explosive, corrosive and dangerous liquid, the identification and judgment rate is accurate and efficient.

Basic Parameters

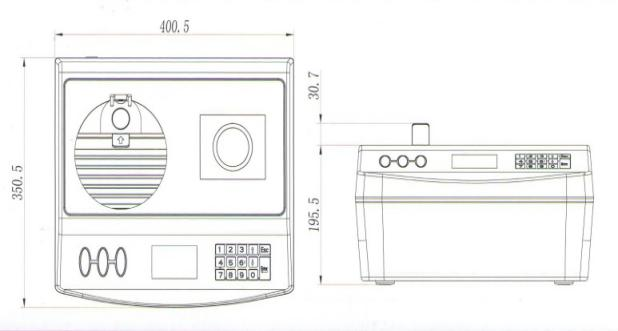

Size: 350.5mm * 400.5mm * 195.5mm
Weight: ≤10kg
Operating Voltage: AC 220V 50 ~ 60Hz
Power Consumption: <20W
Working Environment: -10 ℃ ~ 55 ℃ ≤90% RH

2024070803491049

Verifiable Container Material - It can detect liquids packed in different materials such as iron, aluminum, plastic, glass, and ceramic.

Testable liquid category: flammable, explosive, corrosive and dangerous liquid

Inspection Container Specifications:

Metal container:

1.Volume: not less than 100ml, height not less than 30mm

2.Diameter: more than 30mm and less than 150mm

3.Wall thickness: no more than 0.5mm 2.

Plastic, glass and ceramic containers:

1.Volume: not less than 100ml, height not less than 30mm

2.Diameter: more than 30mm and less than 200mm

3.Wall thickness: no more than 8mm

Start-up Time: 2 seconds, no preheat, automatic calibration

Analysis Time: no more than 1 second for plastic, glass and ceramic containers. Iron cans and aluminum cans do not last more than 5 seconds.

Alarm Mode: sound, light, LCD display, you can turn off the sound alarm or light alarm separately

Database Storage: storage is not less than 200,000 inspections, and inspection data can be exported via USB interface

Identity Authentication: It has the operator identity authentication function and can restrict the operation of unauthorized personnel through the password verification function
