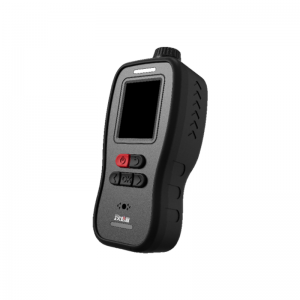

SEED-MG Handheld Gas(VOC) Monitors

Short Description:

The SEED-MG is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb (parts per billion) detection. The SEED-MG offers several models from the most sensitive 1 ppb to a high range up to 10,000 ppm for different applications . A novel design of Photo-ionization Detector (PID) lamp reduces interferences due to humidity. Options includePID/LEL/CO/H2S/NH3/02 detector .With the ability to detect a wide range of threats, it is a cost-effective instrument for security professionals that require portability and flexibility to perform their duties.


Product Details

Product Video

Introduction

The SEED-MG is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb (parts per billion) detection. The SEED-MG offers several models from the most sensitive 1 ppb to a high range up to 10,000 ppm for different applications . A novel design of Photo-ionization Detector (PID) lamp reduces interferences due to humidity. Options includePID/LEL/CO/H2S/NH3/02 detector .With the ability to detect a wide range of threats, it is a cost-effective instrument for security professionals that require portability and flexibility to perform their duties.

Product Features

● PID/LEL/CO/H2S/NH3/02 detector optiona
● 1 ppb to 1,000/10,000 ppm ranges of VOC
● 10-second response time
● Large and intuitive display
● Integrated Correction Factor list of more than 300 compounds
● Man-Down alarm with real-time remote wireless notification
● 4G wireless connection option
● Easy service and maintenance

2024070803160337

Detector Specifications

Sensor



Photo-ionization sensor with standard 10.6 eV lamp;

PID/LEL/CO/H2S/NH3/02 detector optiona



Sampling pump



Pump-suction; Built-in pump @ 500 cc/min;
Radiation function



Csl cesium iodide detector (optional)



Response Time



≤20secnds for VOCs (T90)



Accuracy



±5% (at calibration point)
Direct Readout Real-time reading of gas concentration (ppm,%LEL, %VOL,mg/m3)

PID measurement gas and correction factor, lamp on/off, Man-Down alarm on/ off, battery status, pump status, datalogging on/off, wireless on/off, temperature and time

Alarm



Audible (95 dB @ 30 cm), visual (flashing bright red LEDs),Vibration alarm and on-screen indication of alarm conditions plus wireless remote alarm notification

High, Low, STEL, TWA alarms

Over range alarm, battery low alarm

Man-Down alarm with pre-alarm and real-time remote wireless notification



Charging and Communication



Charging, data download, instrument setup and firmware upgrades  via Type-C USB ,Automatic data storage, can continuously store 300,000 sets of data with date, Support USB or 4G wireless measurement data download and transmission.



Battery/ Run Time Rechargeable Lithium-Ion battery with 15 hours typical operation



Keypad 4 operation keys



Display



2.8 ‘’” TFT-LCD



Calibration



Two point calibration



IP/EX Rating



IP67;Ex ib IIB T4 Gb
ambient temperature 20C~+55C) -40C~+70C

20C~+55C(Typical Value) -40C~+70C (Limit Value)

Size 196 x 85 x 59 mm
Weight ≤750g



Applications

● Industrial Hygiene
● Oil & Gas
● Benzene-Specific Measurements
● Environmental Testing
● Fire & Hazmat
● Paints, Adhesives & Printing
● Degreasers

● Fumigants
● Heat Transfer Fluids
● Industrial Solvents
● Ammonia
● Pulp Mills
● Indoor Air Quality (IAQ)
