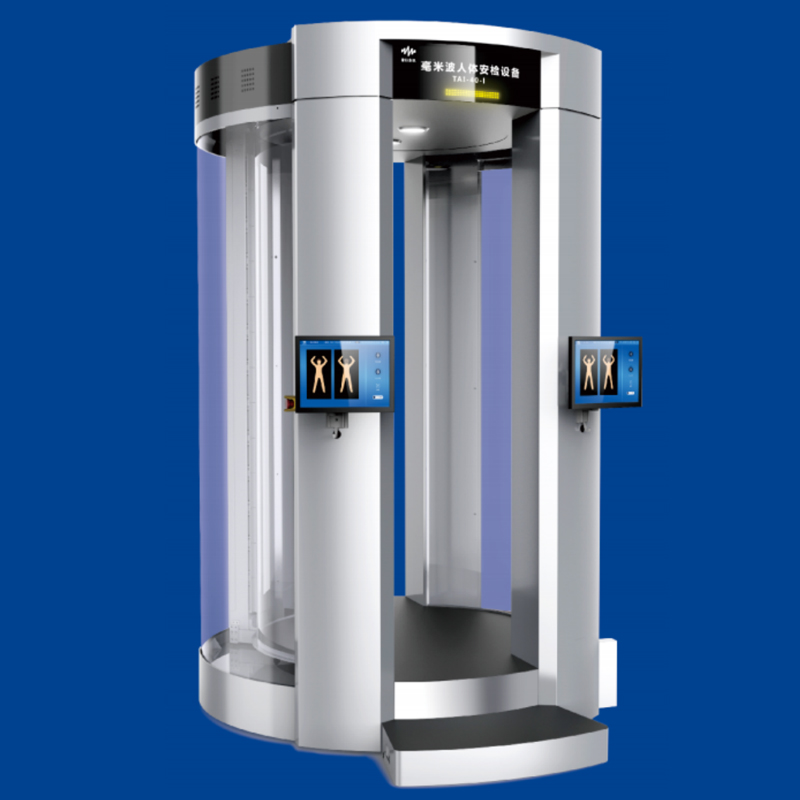

Millimeter wave body scanner
TAI-40-I human safety inspection equipment uses the penetration of millimeter wave, adopts three-dimensional holographic imaging technology and artificial intelligence technology, can intelligently-identify metal and non-metal suspicious objects hidden under clothes, lock the location of suspicious objects in time and alarm.
TAI-40-I adopts humanized design, optional human body temperature measurement function, convenient operation, no need to search, privacy protection, information can be automatically stored, network alarm, can be widely used in airports, public inspection, judicial, prison, customs border inspection, rail transit, major events and other fields of human body security.
Technical characteristics
- All-round rotary scan, no blind spots
- High-performance 3D circular array scanning technology, effective coverage of the whole body, especially on both sides of the body;
- Multi-angle imaging, more data.
- Leading detection rate in the industry
- Effective detection of metal and non-metal suspicious objects hidden under clothing and on the body surface, such as ceramics, powders, liquids, colloids, glass and other items;
- Accurately mark the location of suspicious objects and automatically alarm;
- Suspicious objects can be graded by level.
- Deep integration of artificial intelligence technology, efficient and fast
- The subject only needs to stand still for 2-4 seconds to complete the scan;
- The system automatically determines without manual intervention.
- Strong hierarchical security management ability
- Flexibly adjust the detection time and sensitivity according to the security level to achieve super hierarchical security management.

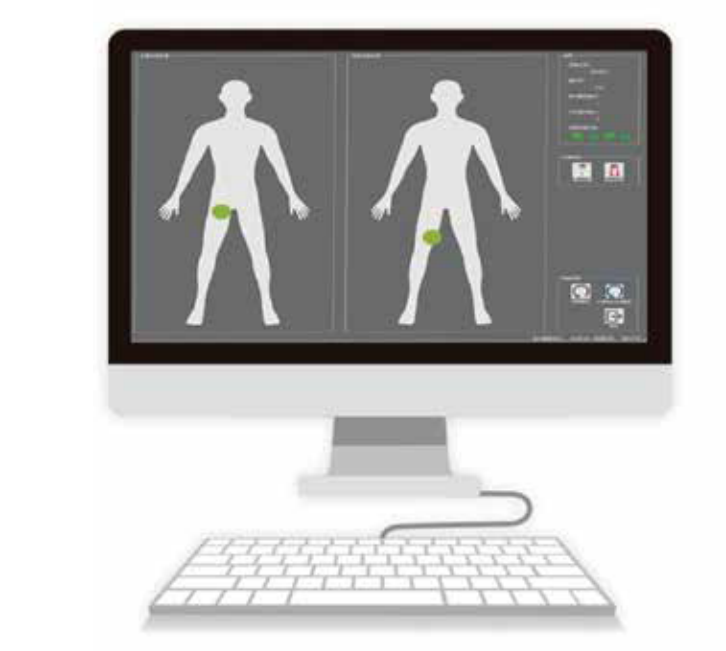

- Three-dimensional dynamic stereoscopic imaging
- High resolution hologram of human body;
- Three-dimensional dynamic stereoscopic image display.
- Privacy protection, civilized security check
- Non-contact scanning inspection;
- Intelligent privacy protection technology, respect for human privacy;
- Doll marks. The test results don't show any physical characteristics.
- The detection process is optional
- It can be flexibly selected according to the on-site situation, and it can guide various inspection processes such as scanning manual inspection in one post and multiple posts or single post scanning multi-post manual inspection.
- Green environmental protection, harmless to the human body
- Millimeter wave technology, no ionizing radiation, electromagnetic radiation is 1‰ of the mobile phone;
- With CNAS qualification authority testing agency radiation testing certification, in line with the national standard "National electromagnetic environmental control limit GB8702-2014".
- Strong scalability
- The equipment can be integrated with other systems according to customer needs;
- Rich industry accumulation, to provide personalized system integration services.
Technical parameter
| Basic parameter | |
| Mode | Non-contact |
| Single scan time | 2~4 seconds, adjustable level |
| Pass rate | 450~600 people/hour |
| Operator | 1 person |
| Items can be detected | Metal/non-metal, such as ceramics, powders, liquids, colloids, glass and other items |
| Installation data | |
| Equipment size | 2456mm(L) *1689mm(W) *2620mm (H) |
| Equipment weight | 900KG |
| Working voltage | AC220V |
| Peak power | < 2.2KW |
| Operating temperature | -5℃~55℃ |
| Image processing | |
| Automatic identification of suspect | Yes |
| Privacy protection | Yes |
| Image processing | contrast adjustment, brightness adjustment, magnification, reduction, etc |
| Data processing | data encryption, data management, data statistics, data storage, etc |
| Advanced function | |
| Extended function | Support multi-unit network, data interaction with other systems |

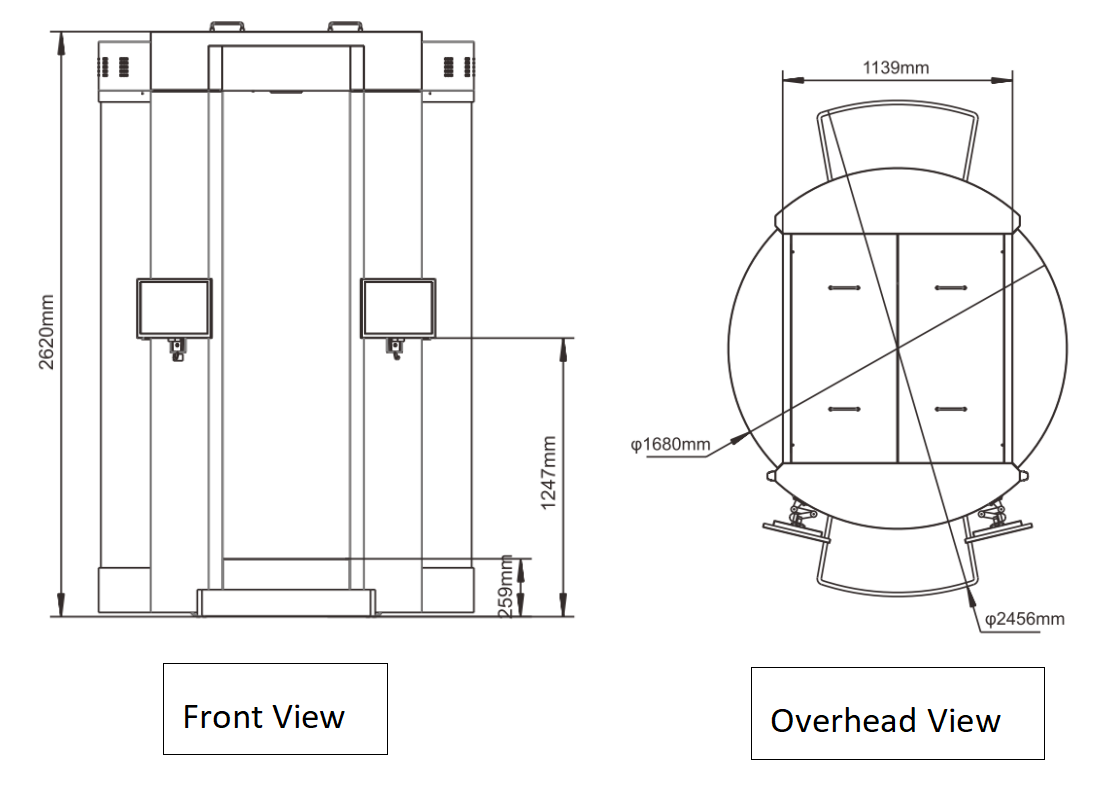

Equipment size
-
