X-Ray Body Scanner

Short Description:


Product Details

Product Video

Production presentation

scenic spots, court sent to appear in court, procuratorate, detenti1. Baggage scanner& body scanner all-in-one:

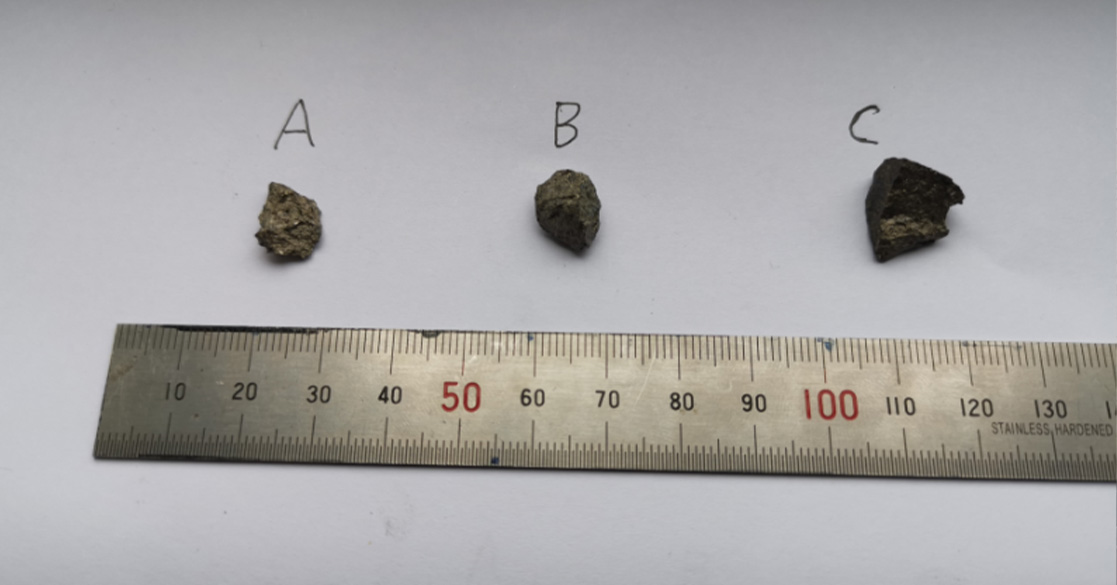

1.1)Body scanner can detect the smallest 0.7cm ore / slime hidden on the human body.

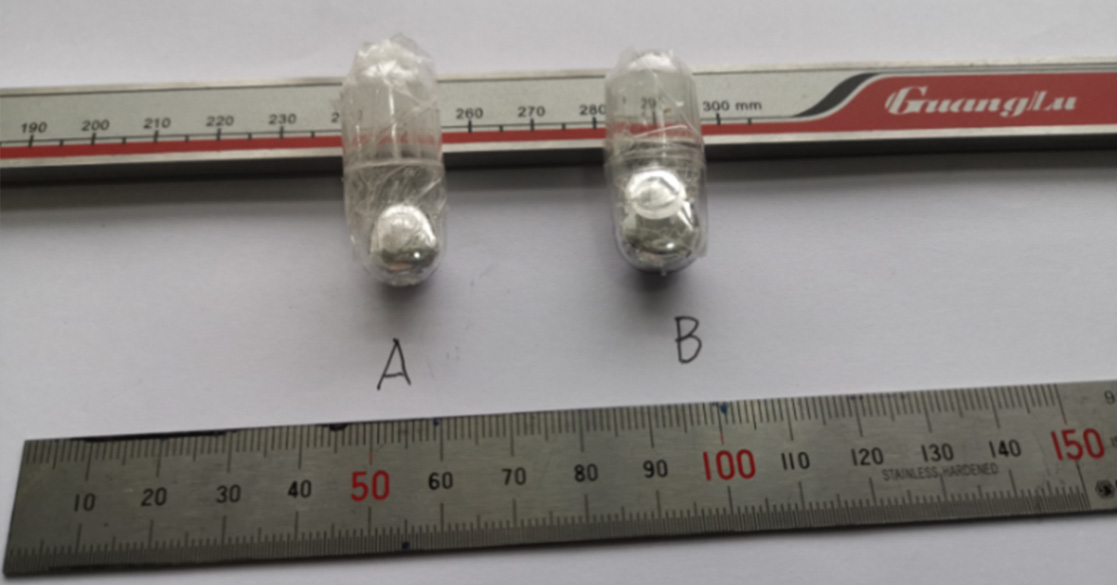

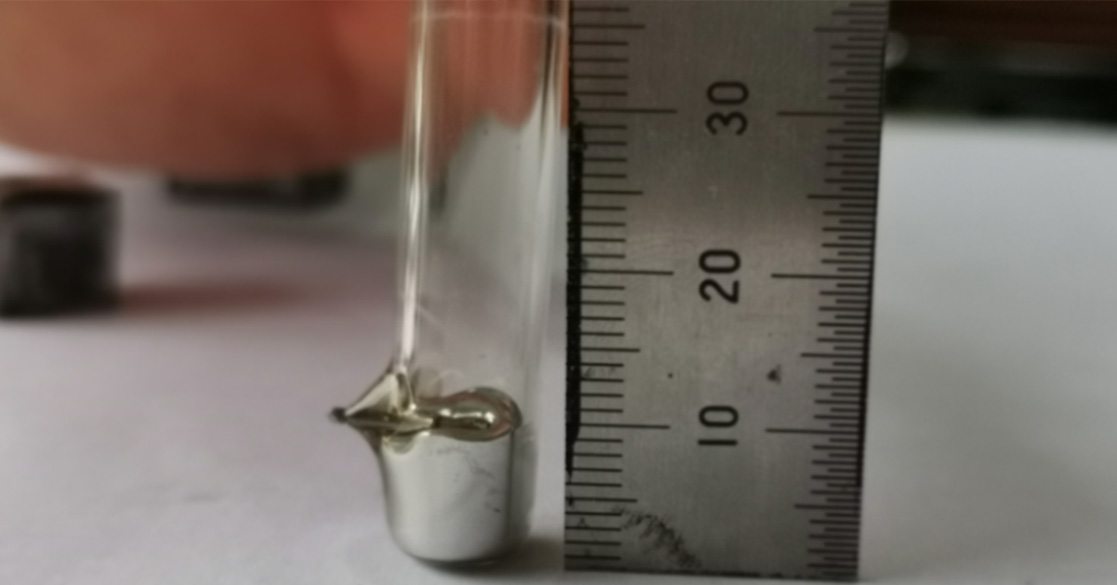

1.2)Mercury in a minimum 1 ml container
1.3)Baggage scnner can detect 0.7cm ore / slime hidden in the package, Skilled operators can detect ore / slime with a size of 0.2cm. And do color matching detection.
1.4)Color detection of other items, such as circuit boards, offensive weapons, foreign bodies in the human body, clothing, etc.
1.5)Autoprompting for detected objects.
1.6)privacy protection for imagingon center, hospital, sports/concert/conference/promotion activities such as short-term rental, small memorial/art/art gallery, bars and other public places of product safety inspection.

The imaging will not reflect the true appearance of the subject, and the privacy of the subject is well protected.

Specification

Technical Parameters
Wire resolution: 40AWG, Resolution Single solid copper wire with diameter 0.0787mm
Spatial resolution: can distinguish 1.3 mm line pairs
Single time: less than 8 seconds
Detection efficiency: 240 persons /hour
Single dose: less than 2 micrograys
Radiation protection: Closed X-ray human body detection equipment, radiation leakage dose rate is less than 1 micro-Gray per hour

System Parameters
Inspection space: 0.6*0.6*2 meters (L* W * H)
Dimensions: 1.5*1.2*2.2 meters (lL* W * H)
Hardware system: Safety guard, Shielding system, Leakage protection system, Voltage stabilizer
Man-machine operation: 22 inch display, human tomography system
Power Supply: 220 V± 10%; 2000W
Environment: -5 ° C ~ 35 ° C; humidity 10% ~ 90%
Optional: UPS uninterruptible power supply, high and low temperature air conditioning system.

2024072502310458
2024072502274253
2024072502322384
2024072502324296

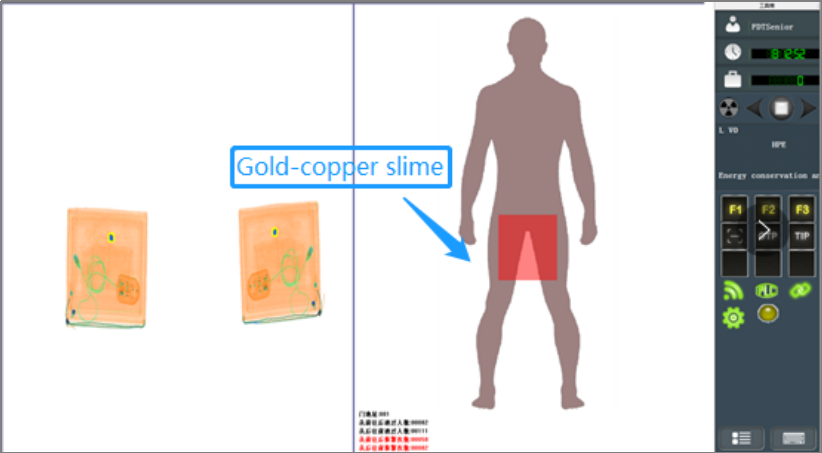

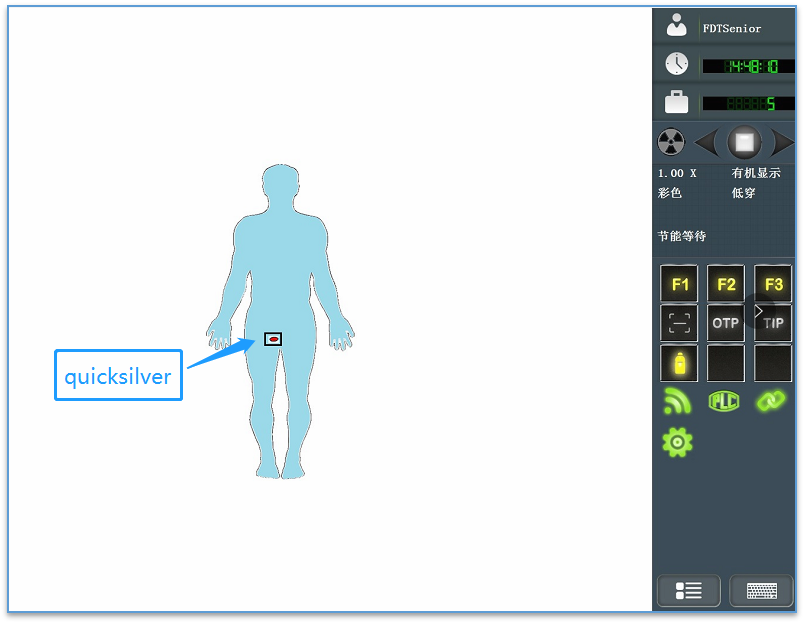

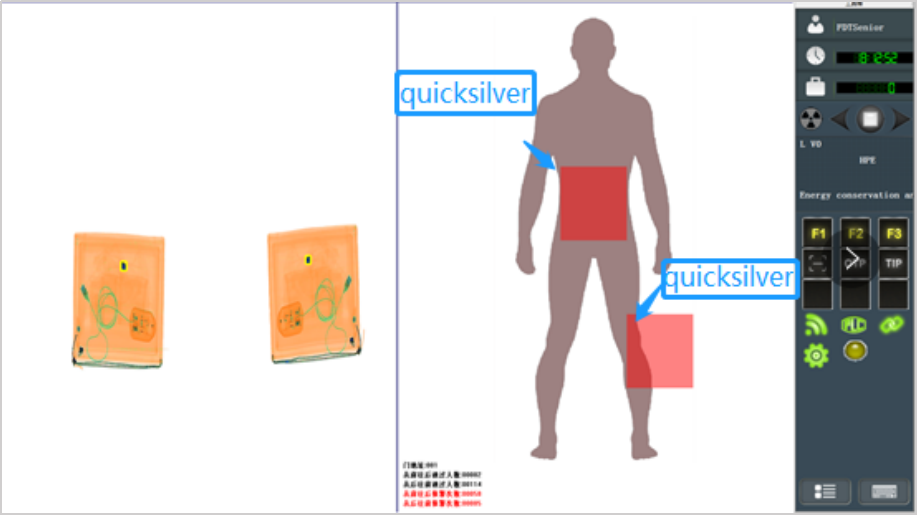

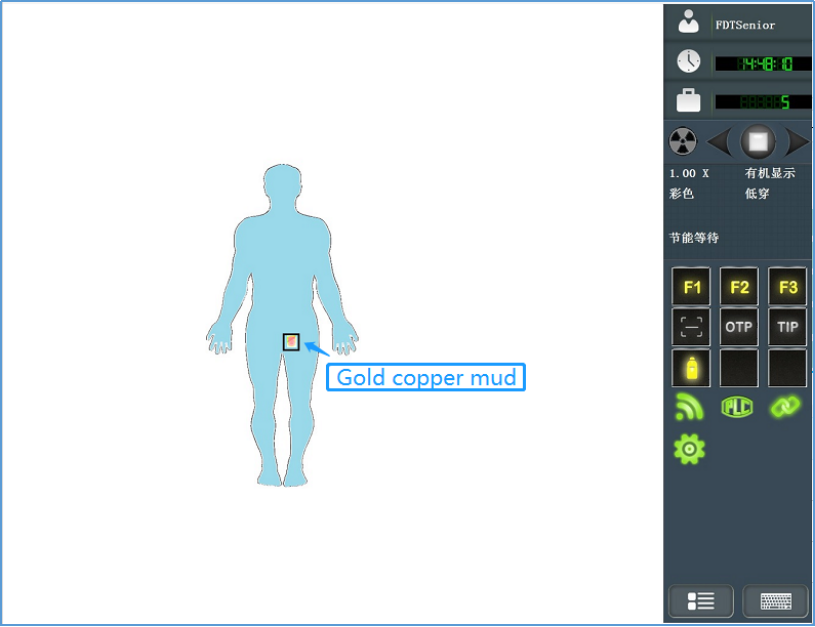

Attached: pictures of detection results

2024072502342687
2024072502344217
2024072502345750
2024072502351717
2024072502354663
